Trapezoid

Shapes by Signature® Carpet Tile Collection

Create a floor with edge using Signature Shapes Carpet Tiles. Trapezoid is available in-stock in selected Vivid and Shift colours. 101 Vivid colours, together with Base and Misty designs are also available to order – with minimum quantities applying. A great shape to use in different colours or to combine with Hexagon tiles for endless design options. Furthermore, Shapes Trapezoid can be used with all Signature Carpet Tiles for a unique flooring solution.

product: vivid
construction: multi-level loop with tip shear
yarn/fibre: Antron Legacy
pile weight: 714g/m2
pile height: 4.0mm
gauge: 1/12
tile size: 500 x 250mm
total thickness: 7.0mm
total weight: 5.3kg/m2
carton size:  3.24m2 (40 pcs/box)
dimensional stability: <0.15%
backing: Thermo Bak™
electrostatic propensity: <3.0kv
fire rating ISO 9239.1: >4.5 kw/m2 critical radiant flux
recommended adhesive: RLA Polymers GS300 &
installation method: random
co-ordinates with: all intelli & friendly carpet tiles
Comfi Bak®: 50m2 min
vivid 101 custom: N/A
shapes other: 50m2 min
traffic: extra heavy duty commercial
warranty: 15 year limited
fire: suitable all areas
sustainability: Greentag certified
availability: in stock

ExtraHeavyDuty  15Yr-Warranty         in-stock-icon

Brochure

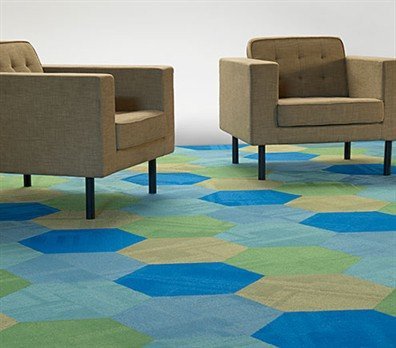

Products Featured:
TZ46 TZ31 TZ75 TZ17 TZ11

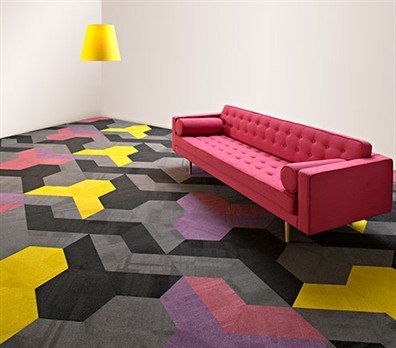

Products Featured:
TZ11 TZ43 TZ65 TZ34 TZ61

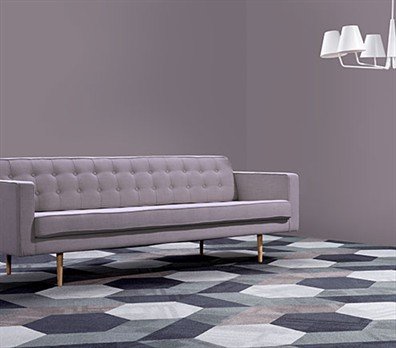

Products Featured:
TZ11 TZ43 TZ65 TZ34 TZ61

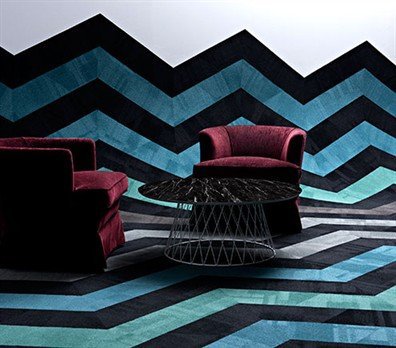

Products Featured:
TZ65 TZ31

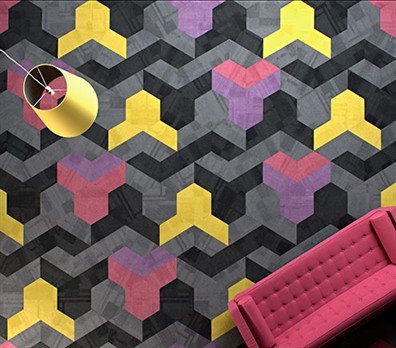

Products Featured:
TZ31 TZ46

Products Featured:
TZ31 TZ46

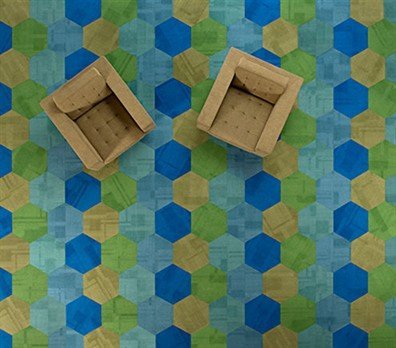

Products Featured:
TZ17 TZ75 TZ34

Products Featured:
TZ17 TZ75 TZ34

Products Featured:
TZ17

Products Featured:
TZ05 TZ75 TZ34

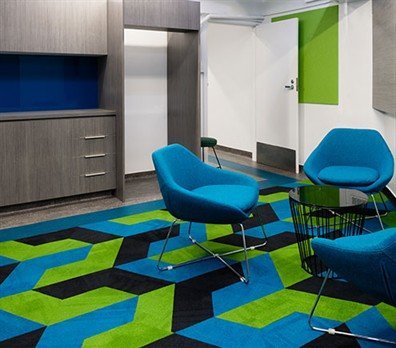

Project:
Palace Nova Cinema, Adelaide

ProductApp         ShapesApp

If you would like to see Signature Shapes® floor designs installed in an office, retail store or venue, check out Signature’s Product App where you can also upload a pic of your project and insert these floors or any of Signature’s wide range of commercial products to create an emailable and printable visuals.  If you’d like to create your own Shapes floor, go to the Shapes by Signature™ by Signature Design Hub and use the Shapes App. Both smart tech tools to help your design workflow.

These documents belong to Signature Floors and should only be distributed with Manager approval.

PLACEHOLDER-A4250

PLACEHOLDER
Last revised: 05/13

PLACEHOLDER-A4250

PLACEHOLDER
Last revised: 05/13

PLACEHOLDER-A4250

PLACEHOLDER
Last revised: 05/13

PLACEHOLDER-A4250

PLACEHOLDER
Last revised: 05/13

PLACEHOLDER-A4250

PLACEHOLDER
Last revised: 05/13

PLACEHOLDER-A4250

PLACEHOLDER
Last revised: 05/13

PLACEHOLDER-A4250

PLACEHOLDER
Last revised: 05/13

PLACEHOLDER-A4250

PLACEHOLDER
Last revised: 05/13

PLACEHOLDER-A4250

PLACEHOLDER
Last revised: 05/13

PLACEHOLDER-A4250

PLACEHOLDER
Last revised: 05/13

Discontinued Products

The above products are no longer available and only are applicable for reference. Please contact Customer Services for any enquiries.

p_trapezoid43Wasabi Pea TZ43Dot

p_trapezoid59Fire Cracker TZ59Dot

p_trapezoid33Plum Pudding TZ33Dot

p_trapezoid31Aqua Marine TZ31Dot

p_trapezoid46Jade Away TZ46Dot

p_trapezoid11House Mouse TZ11Dot

p_trapezoid34Kohl Doll TZ34Dot

p_trapezoid75Smokey Eye TZ75Dot

p_trapezoid17Black Magic TZ17Dot

p_trapezoid05Spray Tan TZ05Dot

ALL DESIGNS CAN BE ORDERED IN 10 SHAPES BY SIGNATURE® – MINIMUM ORDER APPLIES
